# Automatización del hogar con Python, Raspberry Pi y Reconocimiento de voz

### Mauricio Collazos

.footnote[]
---
class: center
[Repositorio en github](https://github.com/contraslash/automatizacion-hogar-raspberry-python)
![https://contraslash.github.io/automatizacion-hogar-raspberry-python/](img/qr.png)

---
# Disclaimer
- No es un taller de IOT
---
class: center
# Modelo de cajas de un asistente conversacional
![Conversational assistant](img/conversational_assistant.png)
---
# Reconocimiento automático de la voz (ASR)

- 1952 Audrey por IBM (Reconocimiento de dígitos)
- 1960 Shebox por IBM (Dígitos y operadores)
- 1972 Dynamic Time Warping (Sakoe, Chiba y Vintsyuk)
- 1980 Hidden Markov Models
- 1990 Gaussian Mixtures Models
- 2000 Robust Speech Recognition
- 2012 Context Dependent Deep Neuran Netwowks Hidden Markov Models
---
# Por qué es dificil?
- Variabilidad
- Continuidad
- Ruido
- Características del locutor
- Cantidad de palabras
---
class: center
# Representación del audio
![Sampling](http://glasnost.itcarlow.ie/~powerk/audio/images/sampling1.gif)
    Sampling
---
class: center

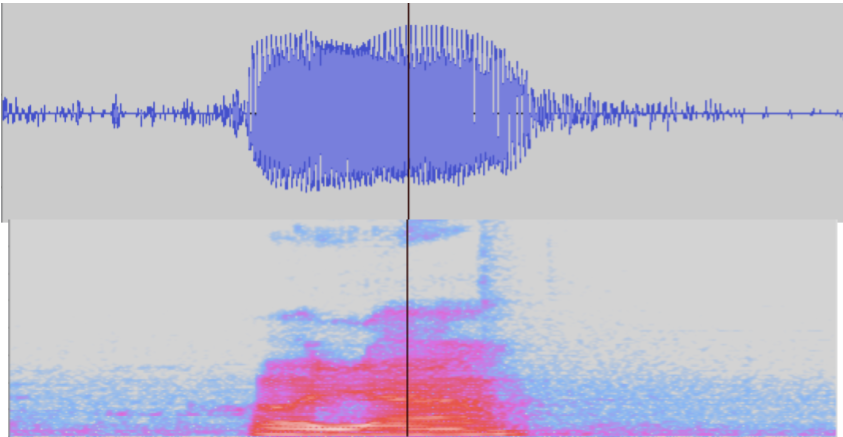

# Extracción de características
![Spectrogram](img/freq-vs-spectre.png)
Frecuencia vs Espectro
---
class: center
# Extracción de características
![Feature extraction](img/fe.png)
Partición y extracción de características
---
# Tipos de características
- Mel Frequency Cepstral Coefficients (MFCC)
- Perceptual Linear Prediction (PLP)
- Linear frequency cepstral coefficients LFCC
- Wavelet-packet features (WPF)
- Subband-based cepstral parameters (SBC)
- Mixed wavelet packet advanced combinational encoder (MWP-ACE)
---
class: center

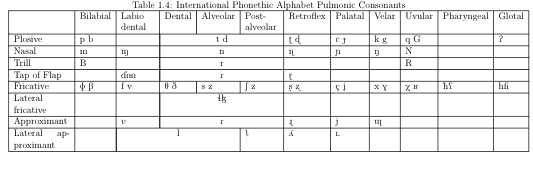

# Unidades básicas del lenguaje
![International Phonetic Alphabet Consonants](img/ipa.png)
Alfabeto fonético internacional Consonantes
---
class: center
# Unidades básicas del lenguaje
![International Phonetic Alphabet Vowels](img/ipa_vow.png)
Alfabeto fonético internacional Vocales
---
class: center
# Modelado acústico
![Hidden Markov Models](img/hmm.png)
Modelos Ocultos de Markov
---
class: center
# Modelado de lenguaje
![ngrams](img/ngrams.png)

N-Gramas

---
# [Speech Recognition](https://pypi.org/project/SpeechRecognition/)

Wrapper:

- [CMU Sphinx](http://cmusphinx.sourceforge.net/wiki/) (works offline)
- [Google Cloud Speech API](https://cloud.google.com/speech/)
- [Wit.ai](https://wit.ai/)
- [Microsoft Bing Voice Recognition](https://www.microsoft.com/cognitive-services/en-us/speech-api)
- [Houndify API](https://houndify.com/)
- [IBM Speech to Text](http://www.ibm.com/smarterplanet/us/en/ibmwatson/developercloud/speech-to-text.html)
- [Snowboy Hotword Detection](https://snowboy.kitt.ai/) (works offline)

Interacción con el micrófono requiere [PyAudio](https://pypi.org/project/PyAudio/)

---
# Google Speech
```python
import speech_recognition as sr

# Obtener el audio del micrófono
r = sr.Recognizer()
with sr.Microphone() as source:
    print("Diga algo")
    audio = r.listen(source)

# Llamar al reconocedor de Google
GOOGLE_CLOUD_CREDENTIALS = r"""JSON_CON_CREDENCIALES"""
try:
print(r.recognize_google_cloud(
    audio,
    credentials_json=GOOGLE_CLOUD_SPEECH_CREDENTIALS
    )
)
except sr.UnknownValueError:
    print("Google Cloud Speech no pudo reconocer su audio")
```

Instalar google-api-python-client y  oauth2client
```python
pip install google-api-python-client oauth2client
```

---
# Leyendo desde un audio
```python
import speech_recognition as sr
import os

# obtain audio from the microphone

AUDIO_FILE = "ruta_absoluta o relativa"
r = sr.Recognizer()
with sr.AudioFile(AUDIO_FILE) as source:
    audio = r.record(source)  # read the entire audio file

GOOGLE_CLOUD_SPEECH_CREDENTIALS = r"""CREDENTIALS"""
try:
    print("Google Cloud Speech thinks you said " + r.recognize_google_cloud(audio, credentials_json=GOOGLE_CLOUD_SPEECH_CREDENTIALS))
except sr.UnknownValueError:
    print("Google Cloud Speech could not understand audio")
except sr.RequestError as e:
    print("Could not request results from Google Cloud Speech service; {0}".format(e))

```
---
# SnowBoy
```python
import speech_recognition as sr

# Obtener el audio del micrófono
r = sr.Recognizer()
with sr.Microphone() as source:
    print("Diga algo")
    audio = r.listen(source)

# Llamar al reconocedor de Snowboy
try:
    print(
        r.snowboy_wait_for_hot_word(
            "ruta_a_la_carpeta_de_snowboy",
            "archivo de activación",
            audio
        ))
except sr.UnknownValueError:
    print("Sphinx could not understand audio")
except sr.RequestError as e:
    print("Sphinx error; {0}".format(e))
```
---
# CMU Sphinx
```python
import speech_recognition as sr

# Obtener el audio del micrófono
r = sr.Recognizer()
with sr.Microphone() as source:
    print("Diga algo")
    audio = r.listen(source)

# Llamar al reconocedor de sphinx
try:
    print(
        r.recognize_sphinx(
            audio,
            (
                "ruta_al_modelo_acustico",
                "ruta_al_modelo_de_lenguaje",
                "ruta_al_diccionario",
            )
        )
    )
except sr.UnknownValueError:
    print("Sphinx no pudo reconocer su audio")
```
---
# Reconocimiento con otros backends
[Wit.ai](https://wit.ai/)
```python
WIT_AI_KEY = "llave_de_32_caracteres_de_wit_ai"
r.recognize_wit(audio, key=WIT_AI_KEY)
```
[Microsoft Bing Voice Recognition](https://www.microsoft.com/cognitive-services/en-us/speech-api>)
```python
BING_KEY = "llave_de_32_caracteres_de_bing"
r.recognize_bing(audio, key=BING_KEY)
```
[IBM Speech to Text](http://www.ibm.com/smarterplanet/us/en/ibmwatson/developercloud/speech-to-text.html)

```python
IBM_USERNAME = "Nombre de usuario de IBM para Speech XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX"
IBM_PASSWORD = "Contraseña de usuario de IBM"
r.recognize_ibm(audio, username=IBM_USERNAME, password=IBM_PASSWORD)
```
---
class: center
# Conexiones entre el Relay y el Raspberry
![Schematics](https://i1.wp.com/electronicshobbyists.com/wp-content/uploads/2018/02/relay-AC.png)
[Controlling AC Devices with Raspberry Pi | Raspberry Pi Relay Control](https://electronicshobbyists.com/controlling-ac-devices-with-raspberry-pi-raspberry-pi-relay-control/)
---
# Encender el bombillo
```python
import RPi.GPIO as GPIO

def configure(pin):
    # Define mode to Broadcom SOC Channel
    GPIO.setmode(GPIO.BCM)
    # Define the pin as output
    GPIO.setup(pin, GPIO.OUT)

def change_state(pin, state):
    # Remember that the pin must be set as output and state must be 0 or 1
    GPIO.output(pin, state)

def cleanup():
    GPIO.cleanup()
```

[GPIO official documentation](https://www.raspberrypi.org/documentation/usage/gpio/)

---
class: center
# Sonoff
![Sonoff](https://cdn3.efectoled.com/46645/interruptor-wifi-simple-remoto-sonoff-rf.jpg)

---
# Configuración DIY

- [FTDI 232](https://www.amazon.com/HiLetgo-FT232RL-Converter-Adapter-Breakout/dp/B00IJXZQ7C/)
- [Sonoff Basic](https://www.itead.cc/smart-home/sonoff-wifi-wireless-switch.html)
- 4x1 Female Header
- Soldador eléctrico
- Jumpers
